RpmExtreme 6L80E - 6L90E Reverse Lamp Module

6L80E - 6L90E Reverse Lamp Module
Part Number: EZCAN-6L-REVERSE - EZCAN 6L Reverse lamp module

Available Options

Retail: $289.00 Web Price: $249.00

Product Description

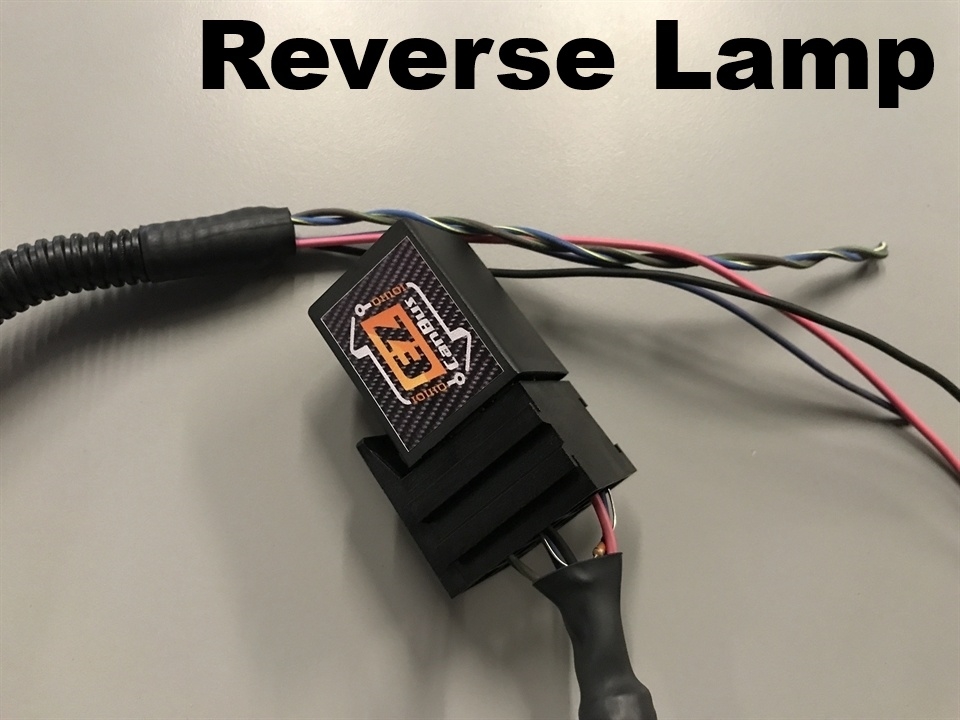

6L80E - 6L90E Reverse Lamp Signal Module:

Most newer transmissions are computer controled and do not have any type of external mode switch. All the data is transmitted on the CANbus to the other computers. While this may be a great solution for the OEM manufactures it creates a issue when your looking to swap it into an older vehicle.

We have developed a simple solution to this problem. Our reverse lamp module is a simple 5 wire hookup and will provide an output for your reverse lights when the vehicle is in reverse. 10 amps max

We recomend using our module to activate a relay for the reverse lamps so the load will be carried by the relay.



Wiring:

  • Ignition +12 Switched
  • Ground
  • CAN +
  • CAN -
  • Reverse Signal Output

Instructions can be found HERE
