Product Description

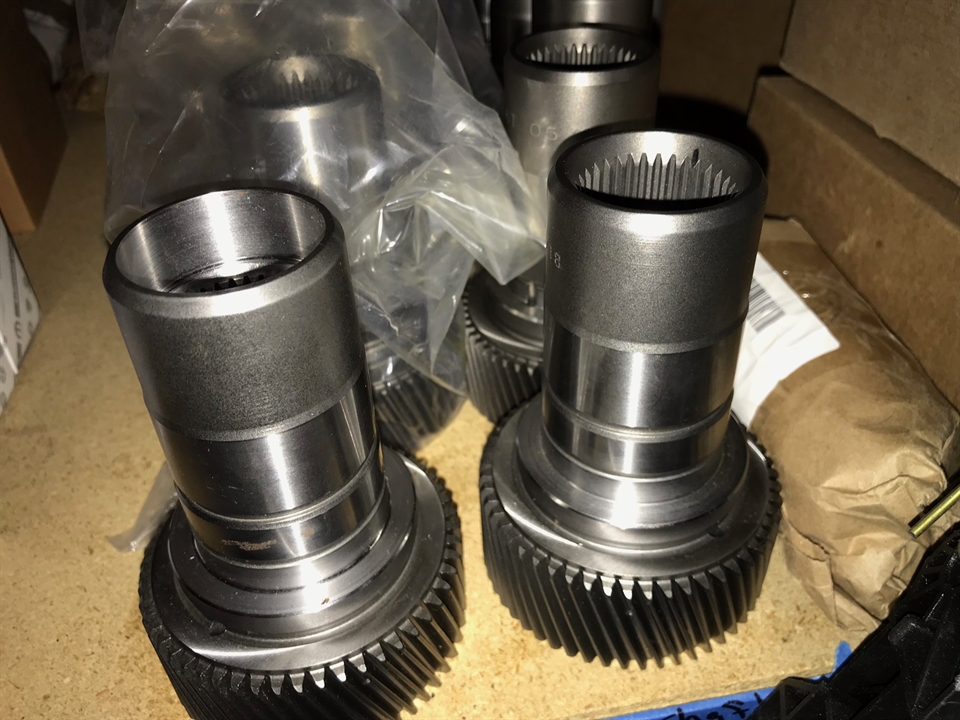

Jeep 241J 32 Spline Input Shaft for GM 6L80-8L90-10L80
There are a few options when selecting your input shaft.
1st is a normal 32 spline input (241J-32-INPUT). This is used when you are adapting to a GM 6l80 Truck transmission that is 4wd or 2wd converted to 4wd.
2nd option is a 32 splined "MACHINED" input (241J-32-M-6L80-CAR). This will be your choice if your running a 2wd "CAR" transmission that has an Oring on the output shaft. The machined input shaft will fit over the Oring groove.
3rd option is a 32 splined machined (241J-32-M-8L90-10L80). This will be used with the 8L90 and 10L80 truck transmissions.
** This adapter WILL NOT work with a 241-OR RUBICON Tcase or any 2012 and newer AUTOMATIC Tcases **
*** NOTE all 2WD transmissions will require cutting down the output shaft, adding a seal and 2 plugs to the transmission side to adapt them for 4WD use.
***** This is only the input shaft for the Transfer Case, You will still need a Seal for the Tcase input and an adapter to the transmission *****
Install Instructions HERE
