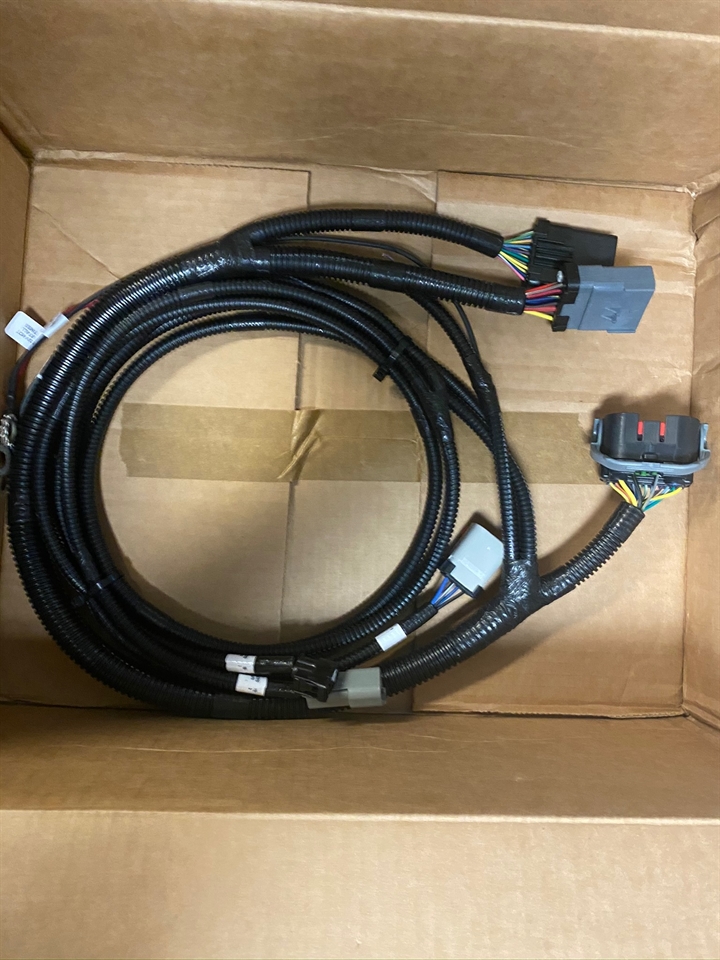

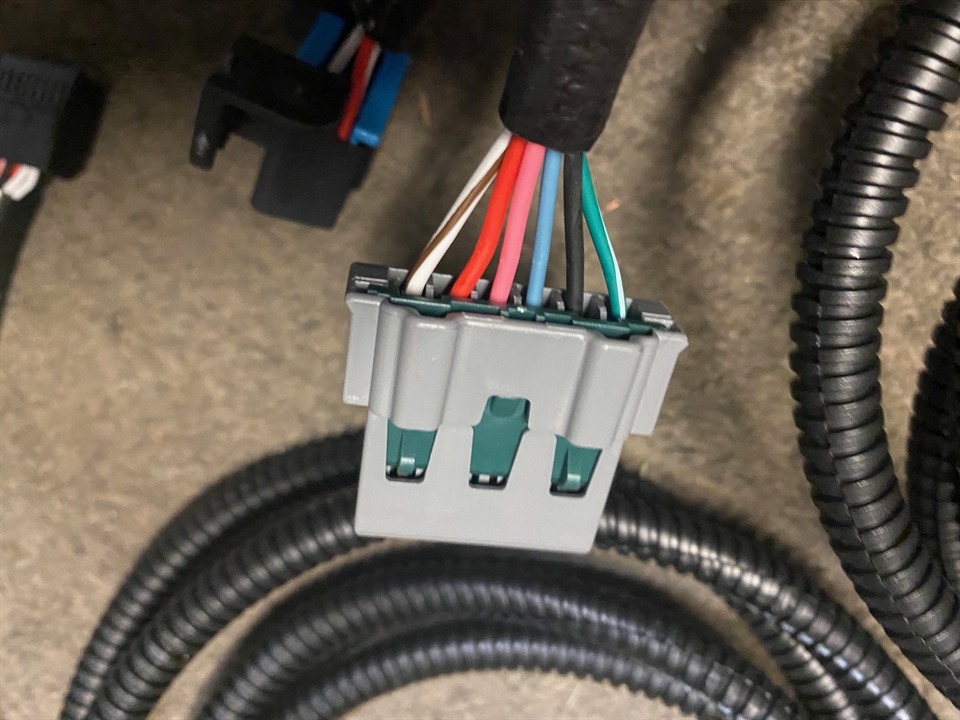

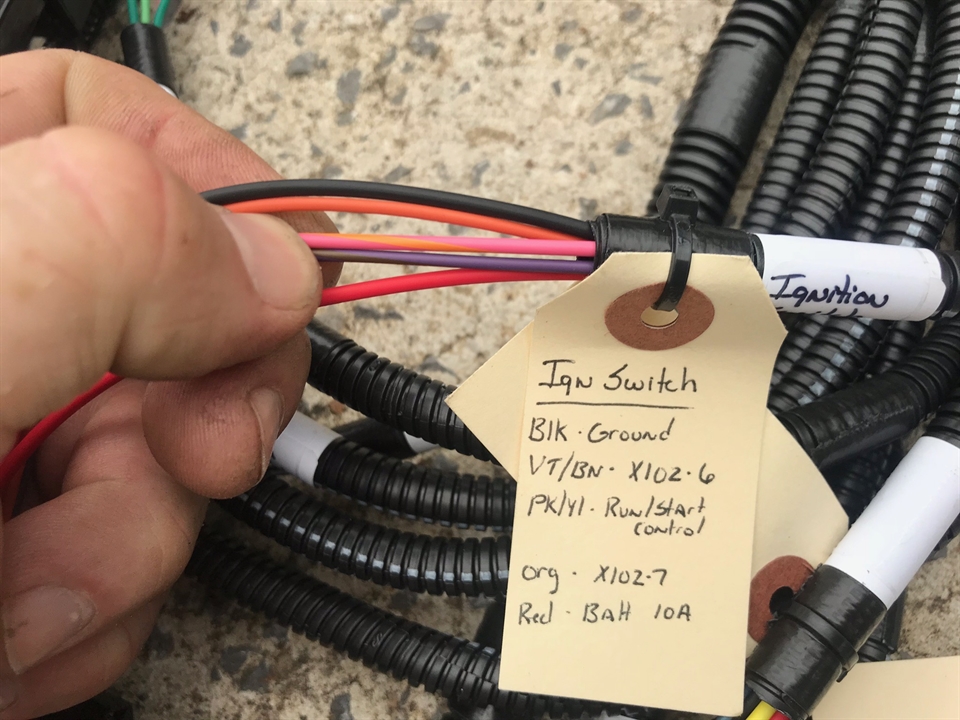

  • 3.6L pentastar WA580 NAG1 standalone harness
  • 3.6L pentastar WA580 NAG1 standalone harness
  • 3.6L pentastar WA580 NAG1 standalone harness
  • 3.6L pentastar WA580 NAG1 standalone harness
  • 3.6L pentastar WA580 NAG1 standalone harness
  • 3.6L pentastar WA580 NAG1 standalone harness
  • 3.6L pentastar WA580 NAG1 standalone harness
  • 3.6L pentastar WA580 NAG1 standalone harness
  • 3.6 pentastar standalone conversion harness rpmextreme ezcanbus

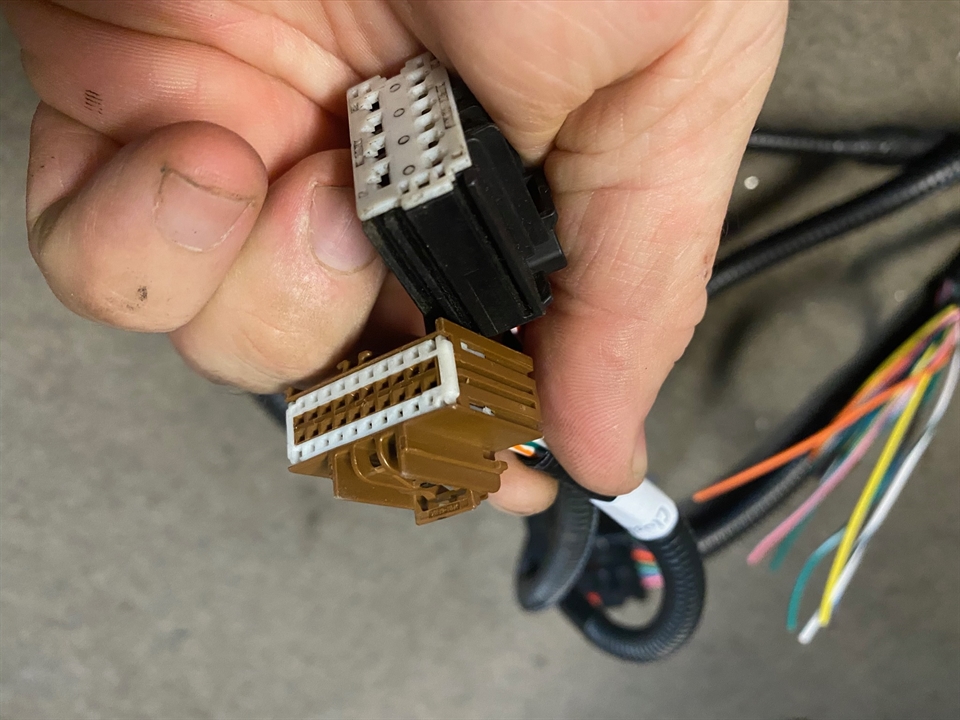

  • 3.6 pentastar standalone instrument cluster connectors

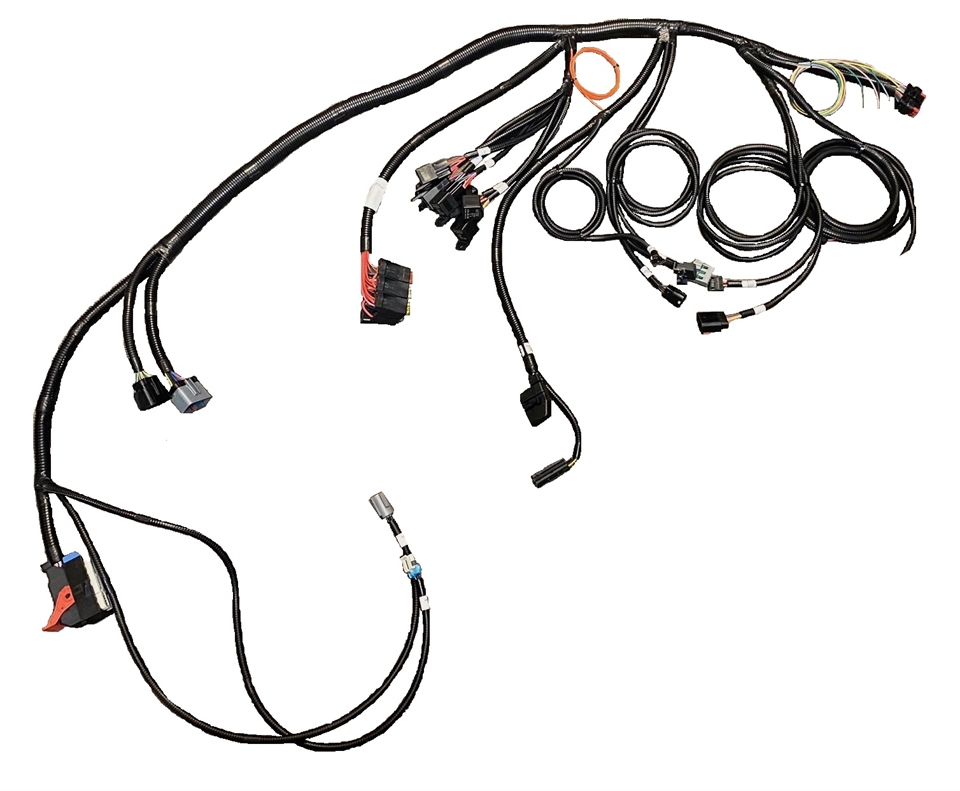

  • Rpmextreme 3.6L standalone conversion harness
  • Rpmextreme 3.6L pentastar standalone conversion harness

Product Description

3.6 Pentastar Standalone Harness/

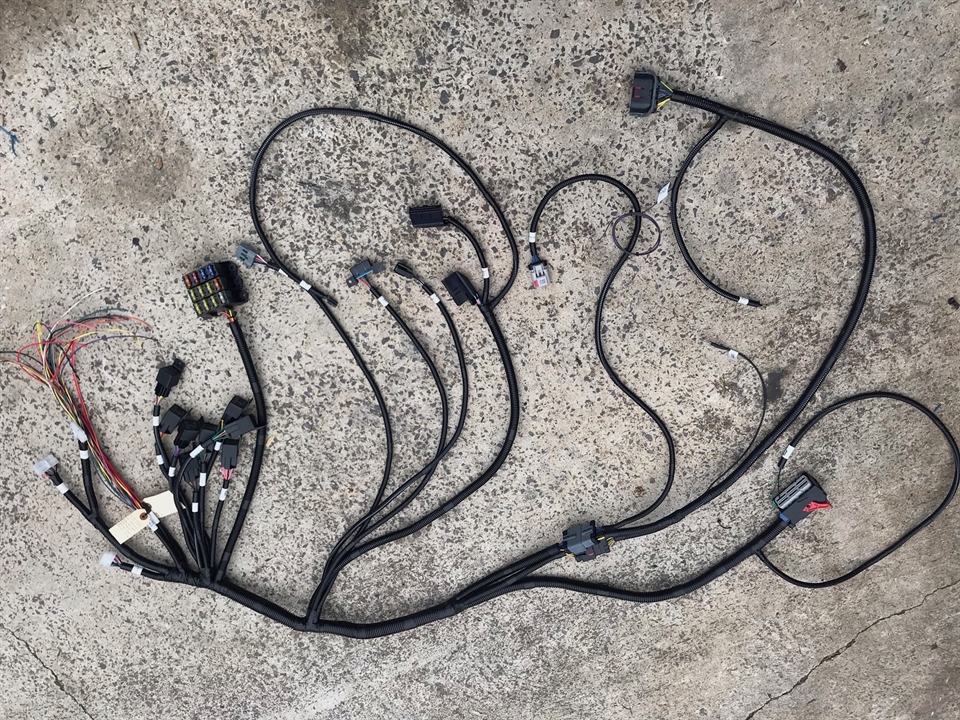

This harness kit will allow you to run a 3.6L - WA580 (NAG1) in any vehicle you so choose.

You will need a complete 2012-2018 Jeep JK 3.6L - WA580 4WD pullout powertrain with the complete factory engine harness still attached as well as the ECU, TCM, Ignition switch-WCM with Key and shifter. If you dont have a ECU, TCM, IGN SW or Shifter we can provide them as needed.

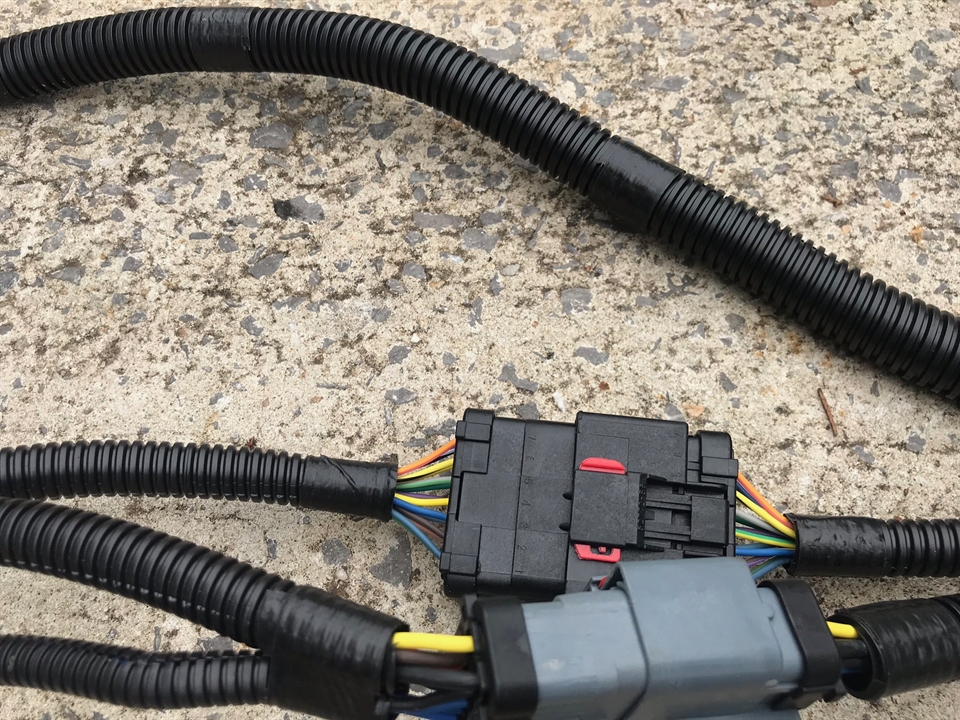

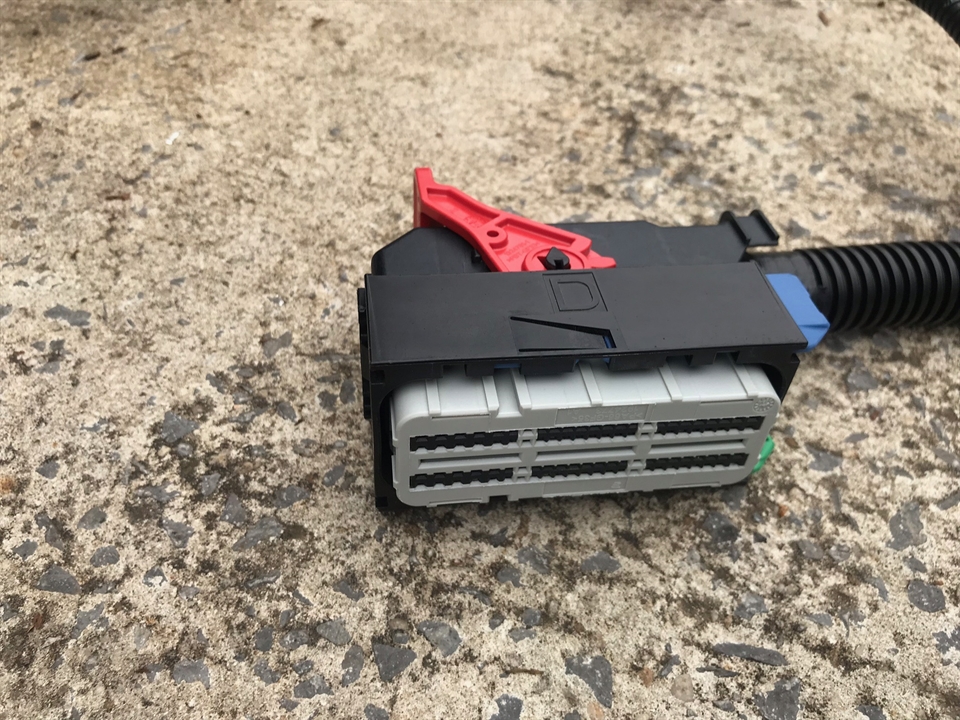

Our harness will connect under the dash and run out thru the firewall and plug directly into the C1 connector of the factory computer and the main engine harness C100 connector.

Our harness will include:

  • Fuses and relays
  • OBD2 Port
  • Input and Output wires
  • CANBUS Module
  • VSS-WSS Module
  • Fan Controls (PWM)
  • Reverse Lamp Output
  • Stop Lamp Output

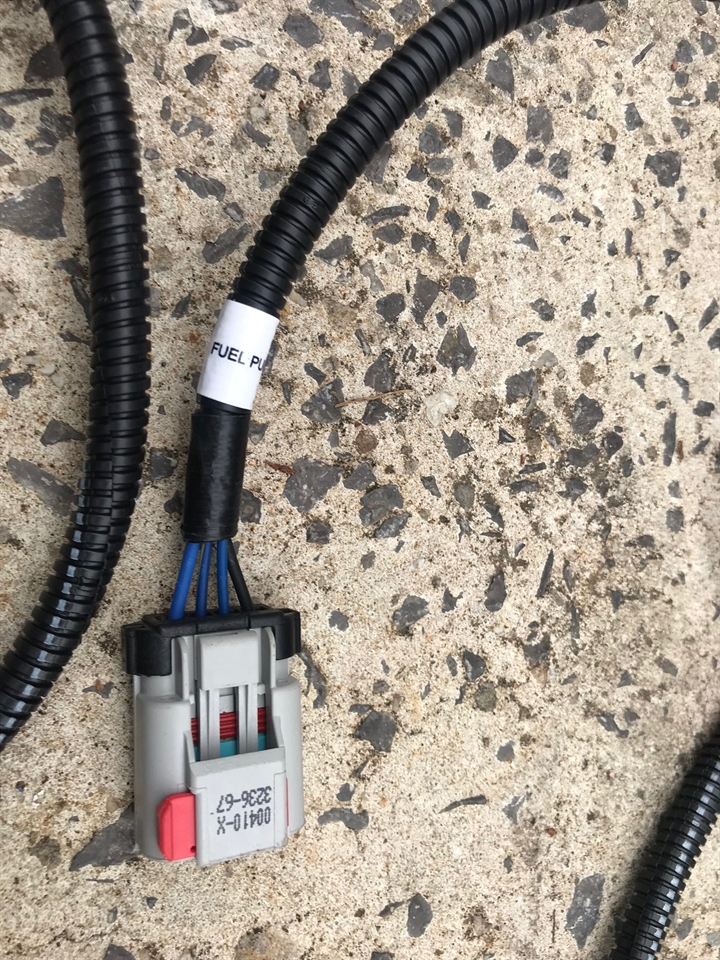

  • Fuel Pump Output
  • MIL Light Output
  • Bump Shift Control

Optional Options:

  • AC Control
  • Cruise Control
  • IPC Cluster Display (Jeep JK)

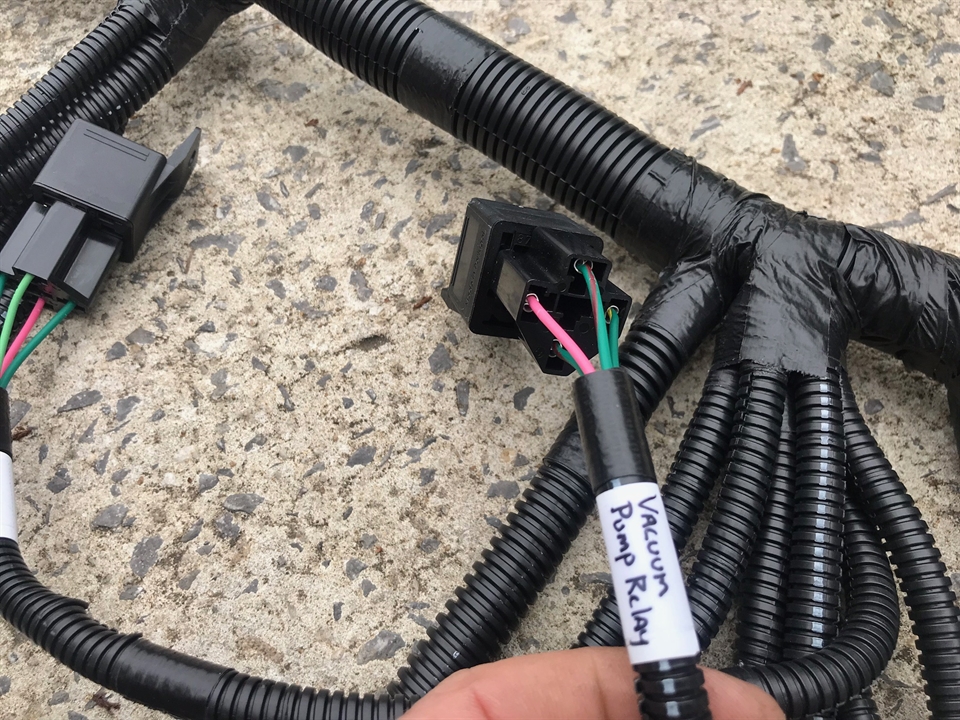

  • Vacuum Pump Control
  • Intercooler Pump Control
  • Transmission Fan Control
  • 4WD Indicator Output
  • AUX Inputs and Outputs as requested
  • RACE PREP - KOH - BAJA - ROCK CRAWLING - ETC
  • Custom Vehicle Integration as resqested
